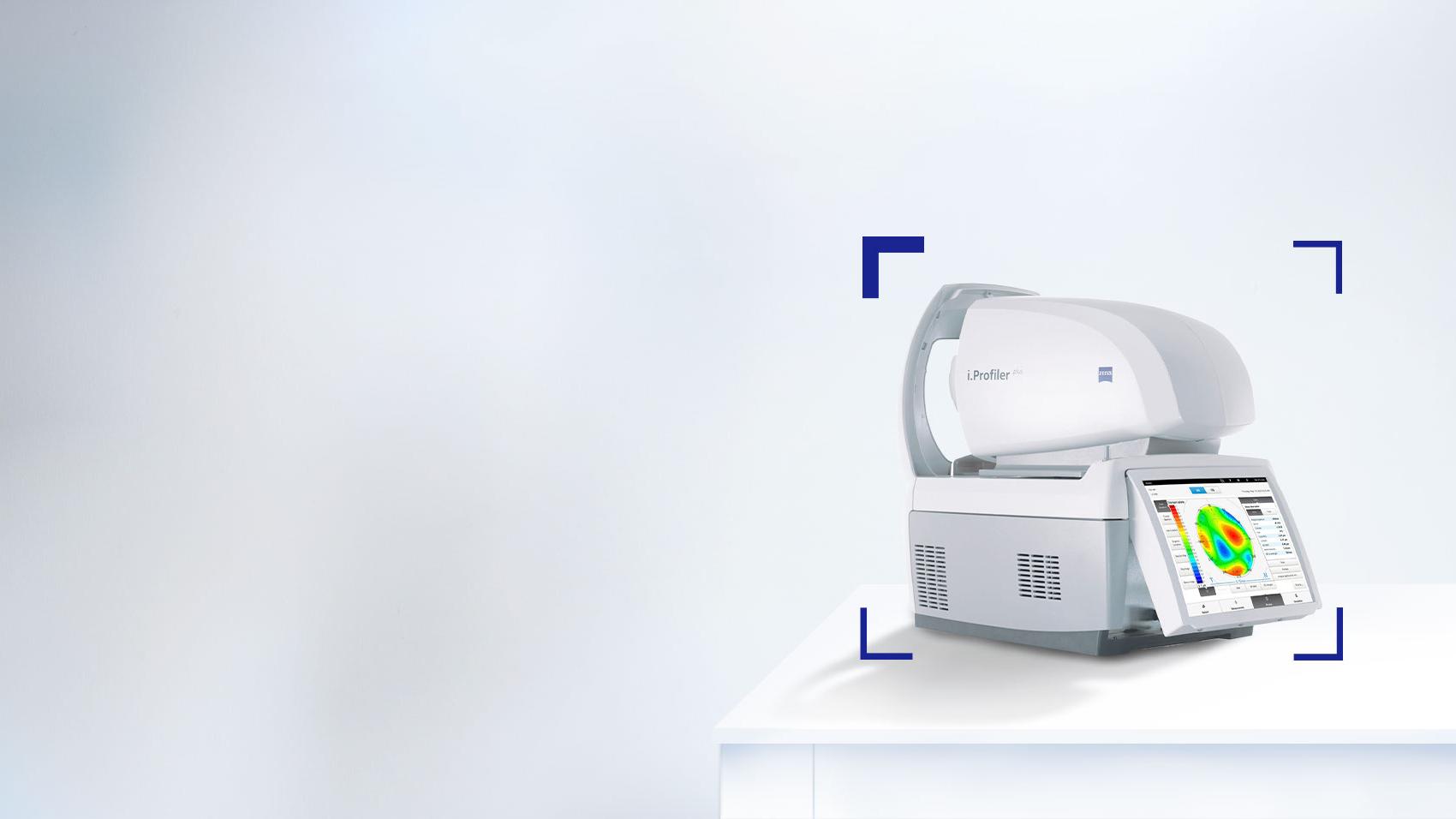

ZEISS i.Profiler ^plus Accurate analysis for better vision, day and night.

The i.Profiler ^plus by ZEISS is a 4-in-1 compact system that combines an ocular wavefront aberrometer, autorefractometer, ATLAS corneal topographer and keratometer in a single device. The most accurate lenses can only be prescribed when you have all the relevant information about a patient’s eyes. Let the ZEISS i.Profiler ^plus provide you with a detailed visual profile so you can answer your patients’ visual needs.

Get in touch

Capture, evaluate and explain the best possible solution for each patient
Provides a comprehensive overview of patients' visual performance and eye conditions
Fast, comprehensive and accurate
Can be incorporated into a digital workstream
Access to i.Scription^® Technology by ZEISS for improved day and night vision

Assist with finding and explaining the best possible solution for each patient.

ZEISS i.Profiler ^plusfeatures a high-resolution wavefront measurement and corneal topography, providing you with all the necessary data to fully evaluate the refractive status of your patient’s eyes.
The analysis mode enables you to visualise the impact of different aberrations on your patient’s vision, including up to 7 Zernike aberrations.
It lets you prescribe ZEISS Lenses with i.Scription Technology, using the generated ‘fingerprint’ measurement of each eye.
Connectivity to the optional ATLAS Review for ZEISS i.Profiler ^plussoftware is enabling advanced keratometry and contact lens fitting.

Gives a comprehensive overview of a patient’s visual performance and eye conditions.

Ability to provide data to support identification and analysis of ocular pathologies or abnormalities.
Supports the user in the identification of patients as good candidates for ZEISS i.Scription lenses.
Provides full analysis of the eye's refractive power distribution across the entire pupil aperture, not just the central zone.

50% reduction in chair time for subjective examination, due to accurate starting objective data generated by ZEISS i.Profiler plus

Fast, comprehensive and accurate.

Fully-automated measurement procedure.
Touch screen control enables all measurements of both eyes in 60 seconds.
High-resolution Hartmann-Shack wavefront sensor measuring 1500 points across a 7-millimeter pupil aperture.
User-friendly, easy-to-use functions enable capture, evaluation, presentation and analysis of data.
50% reduction in chair time for subjective examination, due to accurate starting data generated by ZEISS i.Profiler ^plus. ¹

Access to i.Scription^® Technology by ZEISS.

The 7 visual optics analysis parameters summarize and evaluate the interactions of measurements obtained from the wavefront analyser, the detected pupil and the corneal topographer.
This provides an automatic and complete assessment of the eye optics, a sound foundation of a fast and accurate subjective refraction, and the identification of ‘i.Scription ready’ patients.
With ZEISS i.Scription Technology, you can offer each patient a unique lens solution, improving their vision day and night.
The benefits of i.Scription^® Technology by ZEISS can be simulated and demonstrated to the patient using the point spread function graphs and comparison (with and without i.Scription).

Can be incorporated into your digital workstream.

Outstanding connectivity: incorporate it into your digital workstream.

Ability to remotely access the ZEISS i.Profiler ^plusvia VISUCONSULT 500 and demonstrate the patient’s ZEISS i.Scription analysis on the iPad^{® 2}.
The data captured from the ZEISS i.Profiler ^plusis saved on the VISUCONSULT 500 data management system, allowing for future consultation use, ordering and archiving, without any need for further measurements.
It integrates with compatible PMS systems for a smooth and efficient workflow.³

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS i.Profiler ^plus

Technical specifications

Technical Data Wavefront
Measuring range, cylinder:	0 D to +8 D
Measuring range, sphere:	-20 D to +20 D (3.5 mm pupils)
Measuring range, sphere:	-15 D to +15 D (5.5 mm pupils)
Axis:	0º – 180º
Measuring surface:	2.0 mm to 7.0 mm (three zones)
No. of measuring points:	up to 1500
Method:	Hartmann-Shack
Reference wavelength¹:	555 nm according to ISO 24157

Technical Data Corneal Topography
No. of rings:	22 (18 complete rings)
No. of measuring points:	3,425
Detected corneal surface at 42.125 D:	dia. 0.75 mm to 8.6 mm
Diopters:	measuring range 25 to 65 D
Accuracy:	± 0.05 D (±0.01 mm)
Reproducibility:	± 0.10 D (±0.02 mm)
Type A:	according to ISO 19980

^{1 Reference wavelength for the interpretation of refractive errors (referring to maximum luminosity function V(λ) of the human eye in daylight).}

Line voltage	100-240 V AC ± 10%, 50…60 Hz
Power consumption	≤ 200 VA
Dimensions (W x H x D)	345 x 555 x 525 mm
Weight	30 kg
Interfaces	VGA, 3x USB, RS232, 2x LAN
Printer	Thermal, integrated
Display	12" Color Touch LCD
